QL SERIES

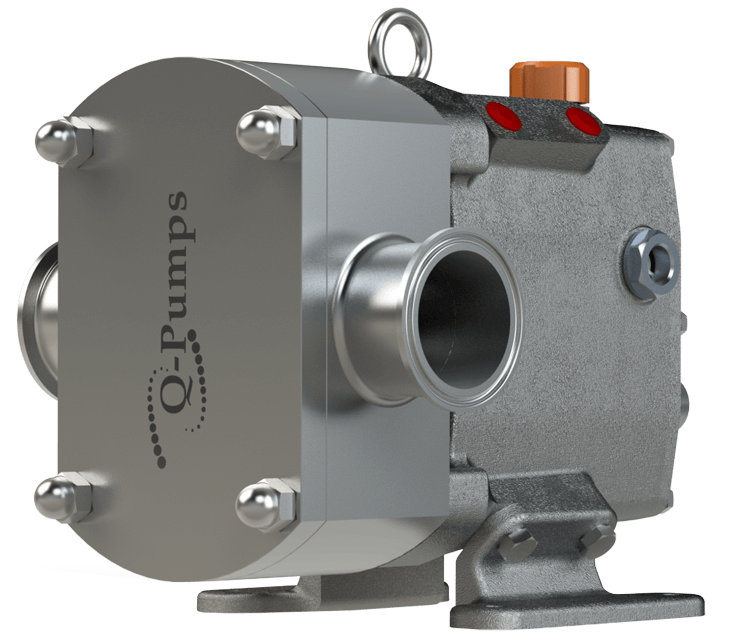

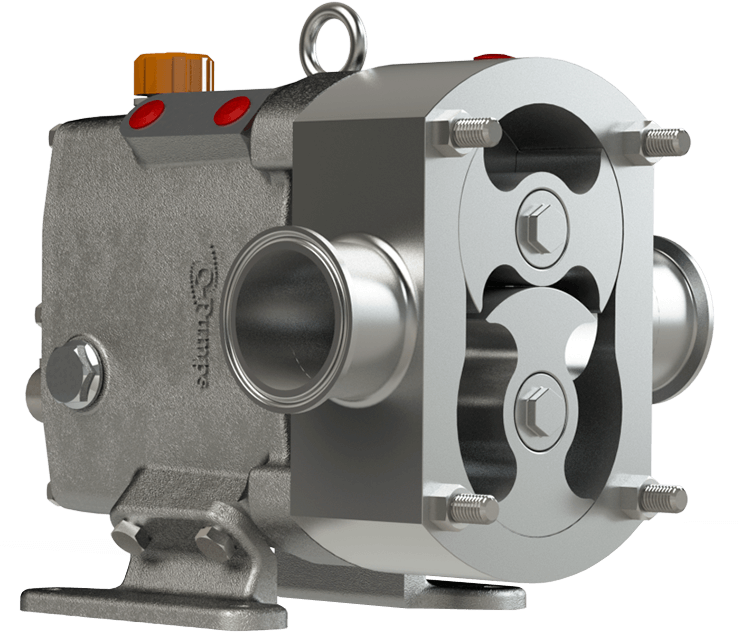

Rotary Lobe Pump

Rotary Lobe pumps for great performance

The QL Series feature positive displacement and due to their great versatility, can be adjusted to different applications. Certifications: 3A and EHEDG

I'M INTERESTED

What can I use the QL SERIES for?

Sauces

Pulps

Syrups

Purees

Characteristics

  • Has 4 different seal types to match each application
  • Standard seal material: Tungsten Carbide vs. Tungsten Carbide
  • Connections: Clamp (standard), SMS, Bevel Seat, DIN, and Brida available

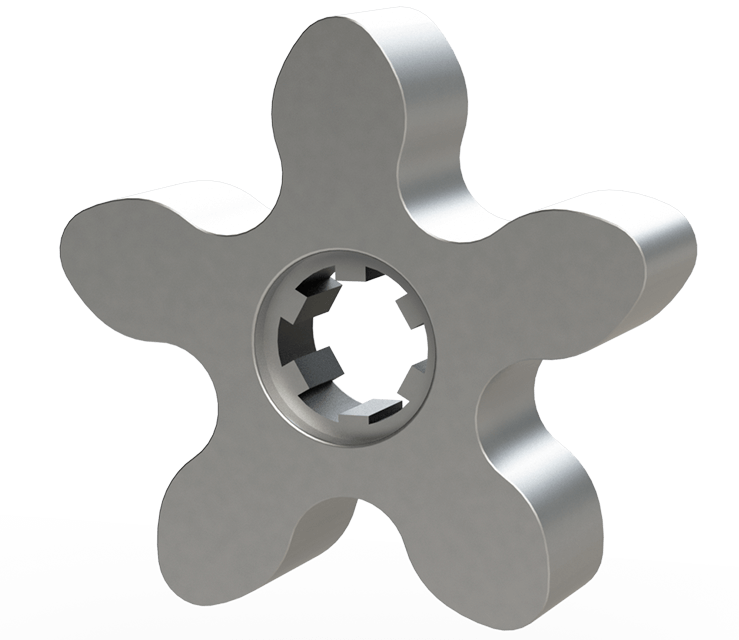

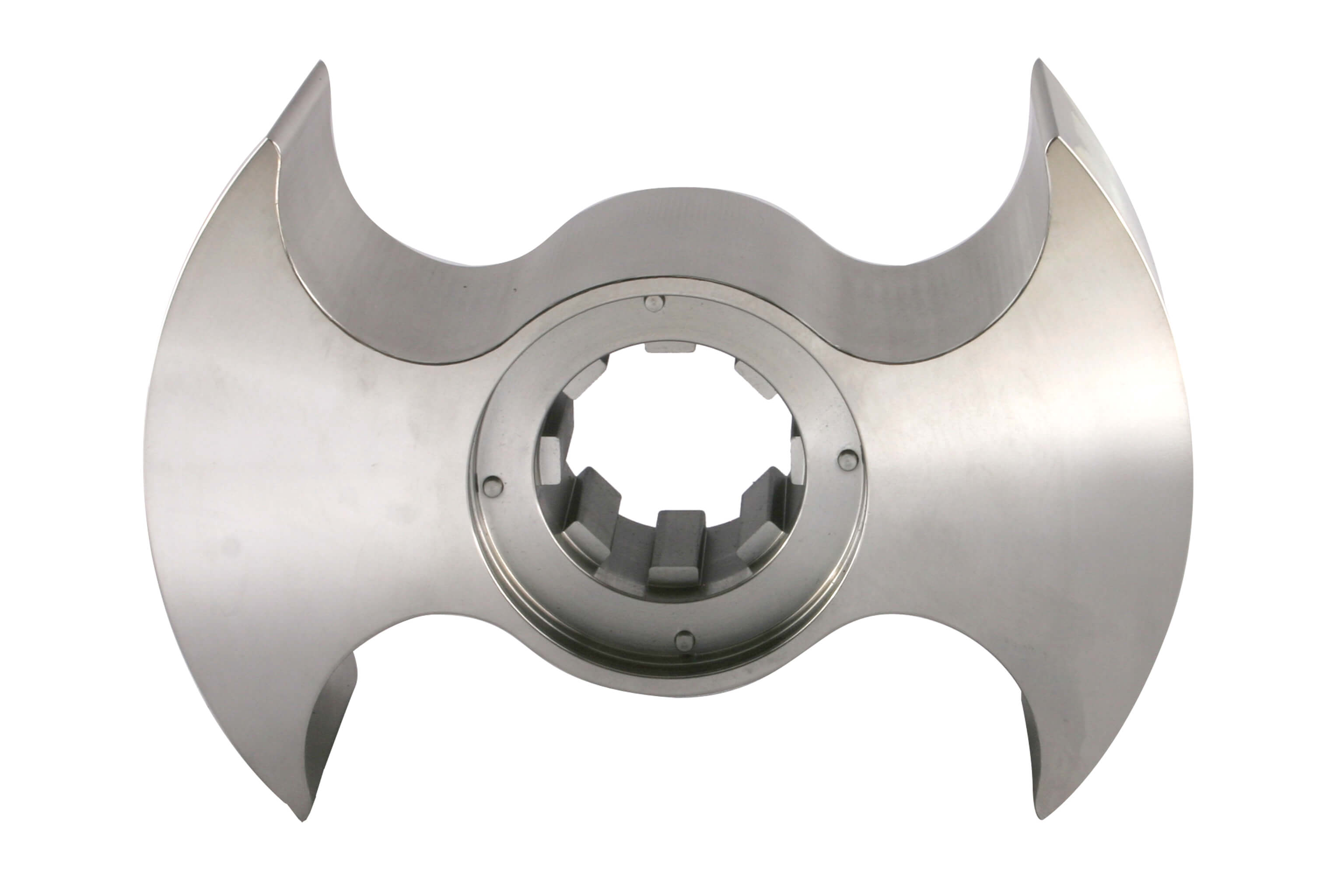

  • Different rotor options: Bi-wing, Single-wing, Tri-lobe, Multi-lobe
  • Bearing box available in cast iron or stainless steel.

Advantages

  • Accesible price
  • The front access allows quick and easy cleaning
  • The bi-wing rotors geothermic design offers a very high performance
  • Thanks to the pumps versatility, it can be tailored to meet each applications need.
Reference Data

Flow: 441 gpm / 1,670 lpm

Pressure: 20 bar / 300 psi

Viscosity: 1,000,000 cP

Temperature: 149ºC / 300ºF

Available sizes

NaN
